open AutopilotPanel

A 3D printable autopilot panel for Microsoft Flightsimulator modeled after the Garmin GFC 500

Features

• 3 Rotary Encoder (HDG / ALT / VS up/down)
• 12 Pushbuttons
• Emulates a standard gamecontroller (no additional software needed)

Uses Materials

• 1 Arduino Pro Micro
• 1 MCP23017 I²C Port Expander
• 3 Rotary Encoder
• 12 Miro Pushbuttons 6x6x5
• 26 AWG silicone wire
• Dupont connectors
• Double sided tape

Assembly

The mechaical design was done in Fusion 360. The assemby files can be found in CAD files as .f3z and .step files. STL files for direct 3D Printing can be found on Thiniverse.

The electrical design was made with EasyEDA. The files for the PCB can either be found in the folder PCB files or you can order them directly here: https://oshwlab.com/patrick.harrer94/open-autopilot

A wiring diagram for the connection between arduino and PCB or for manual wiring can be also found in the PCB fiels folder.

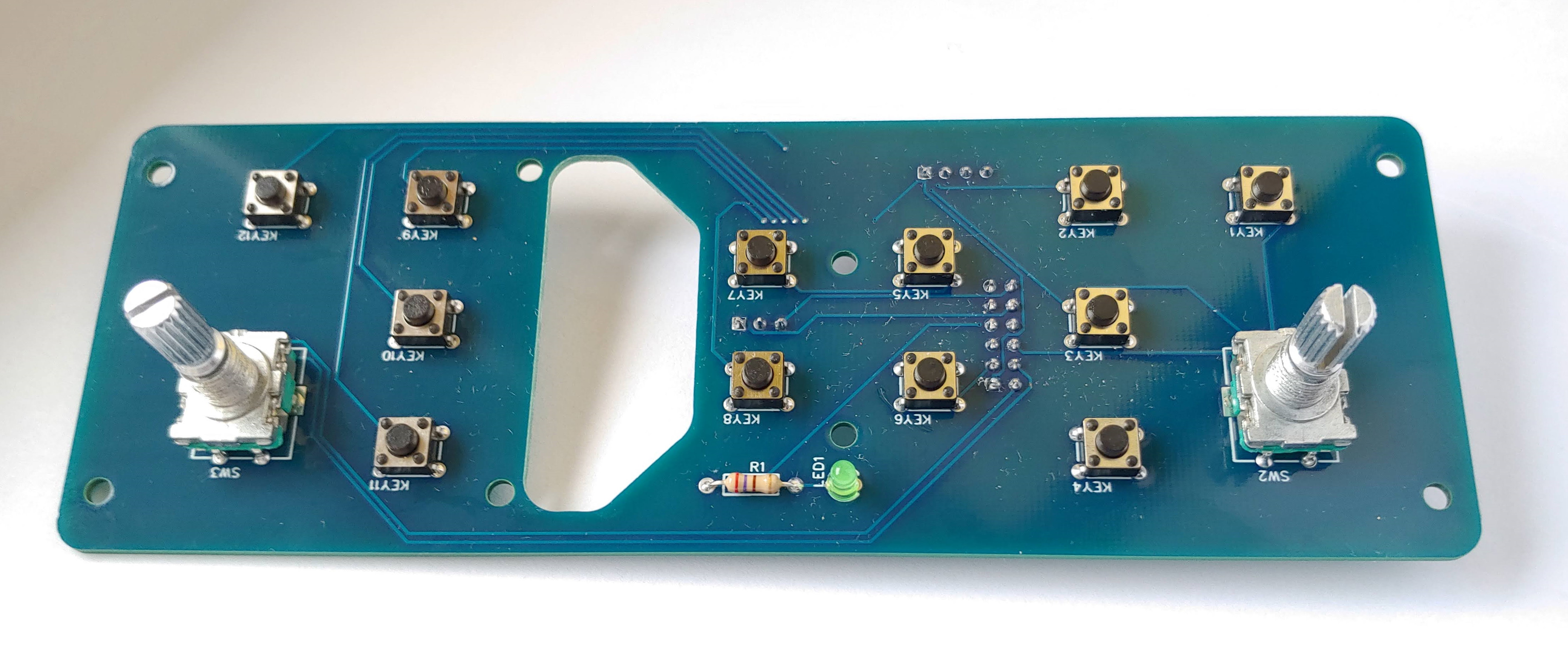

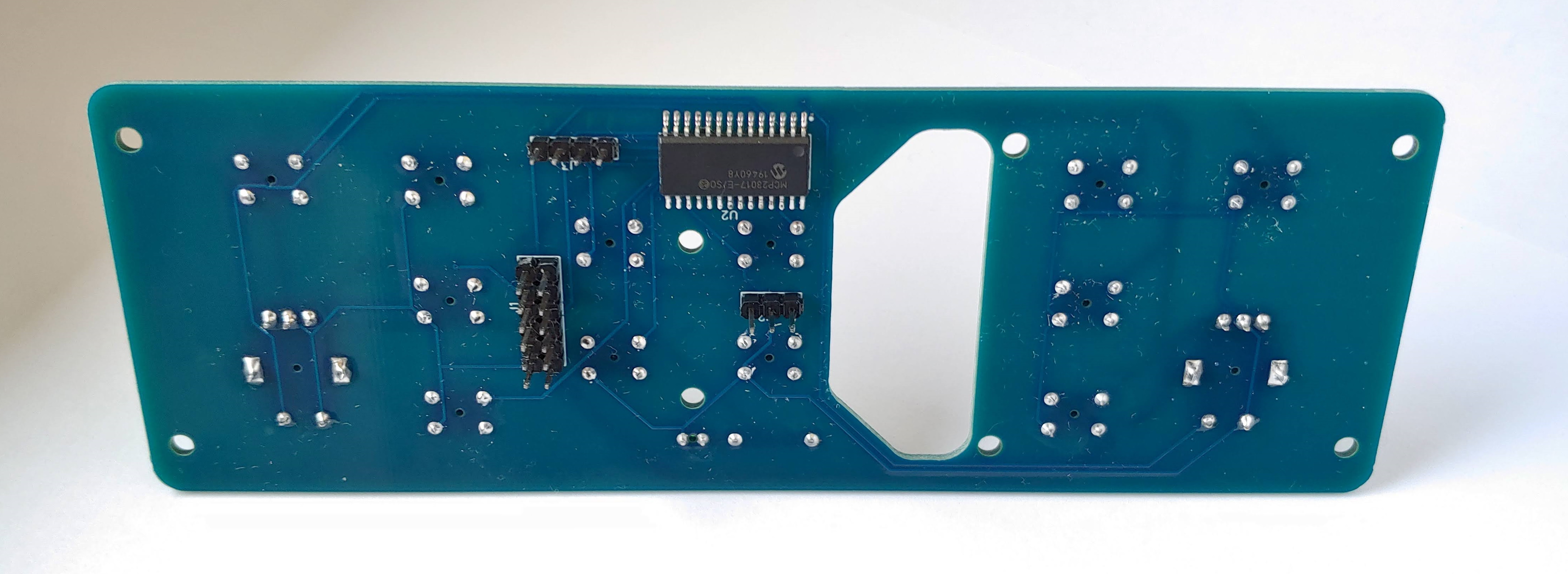

PCB Assembly

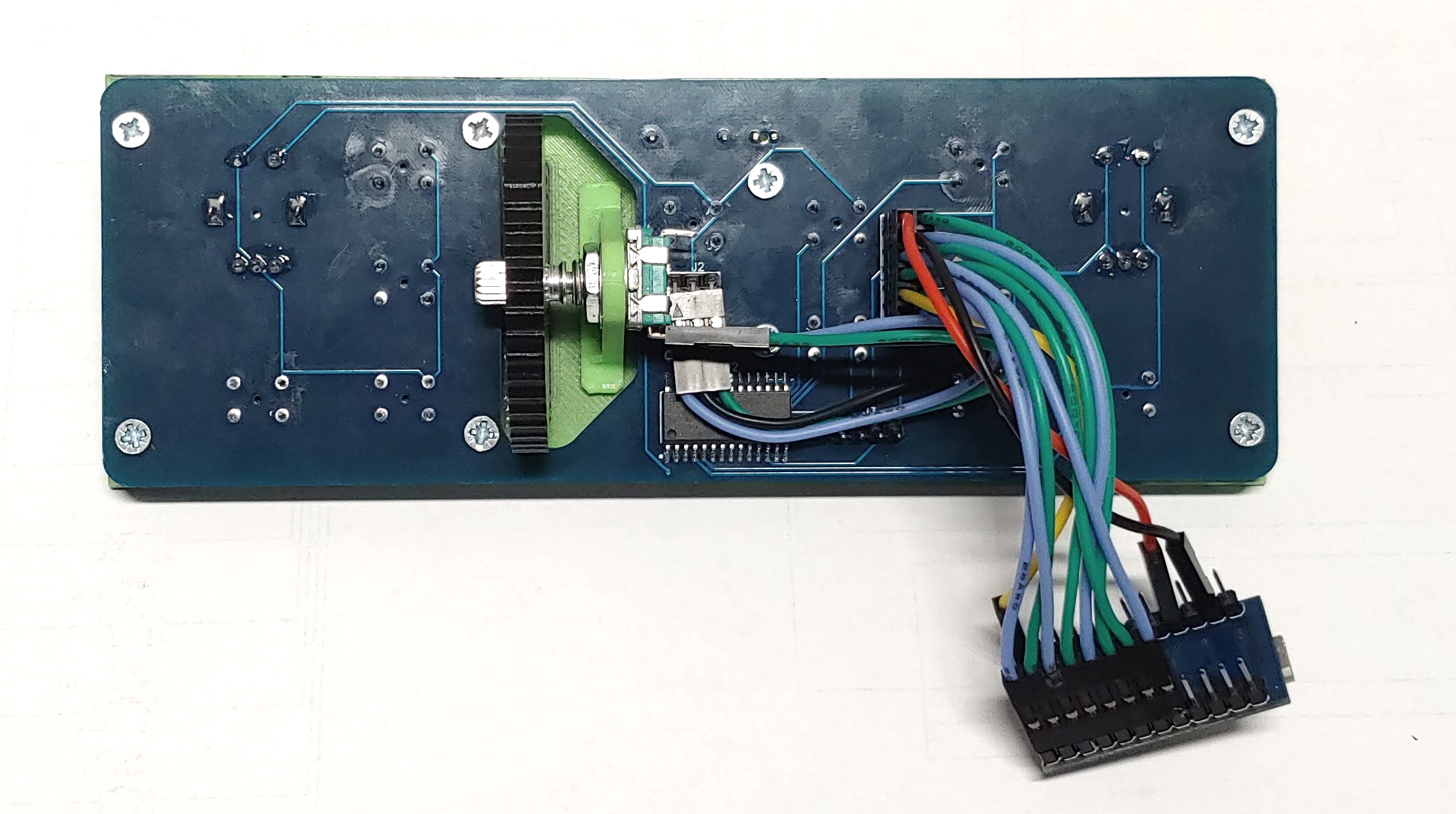

Electronic Assembly

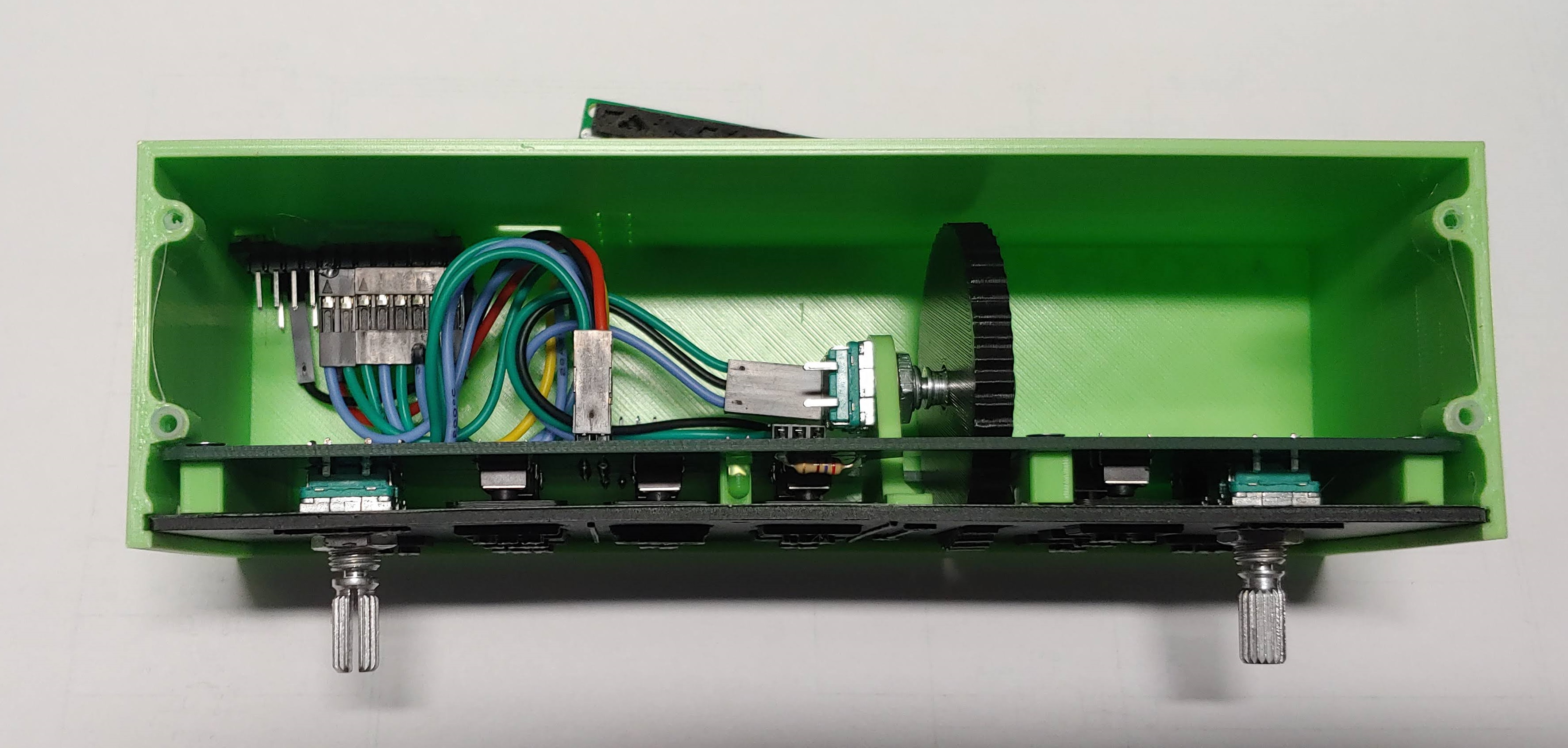

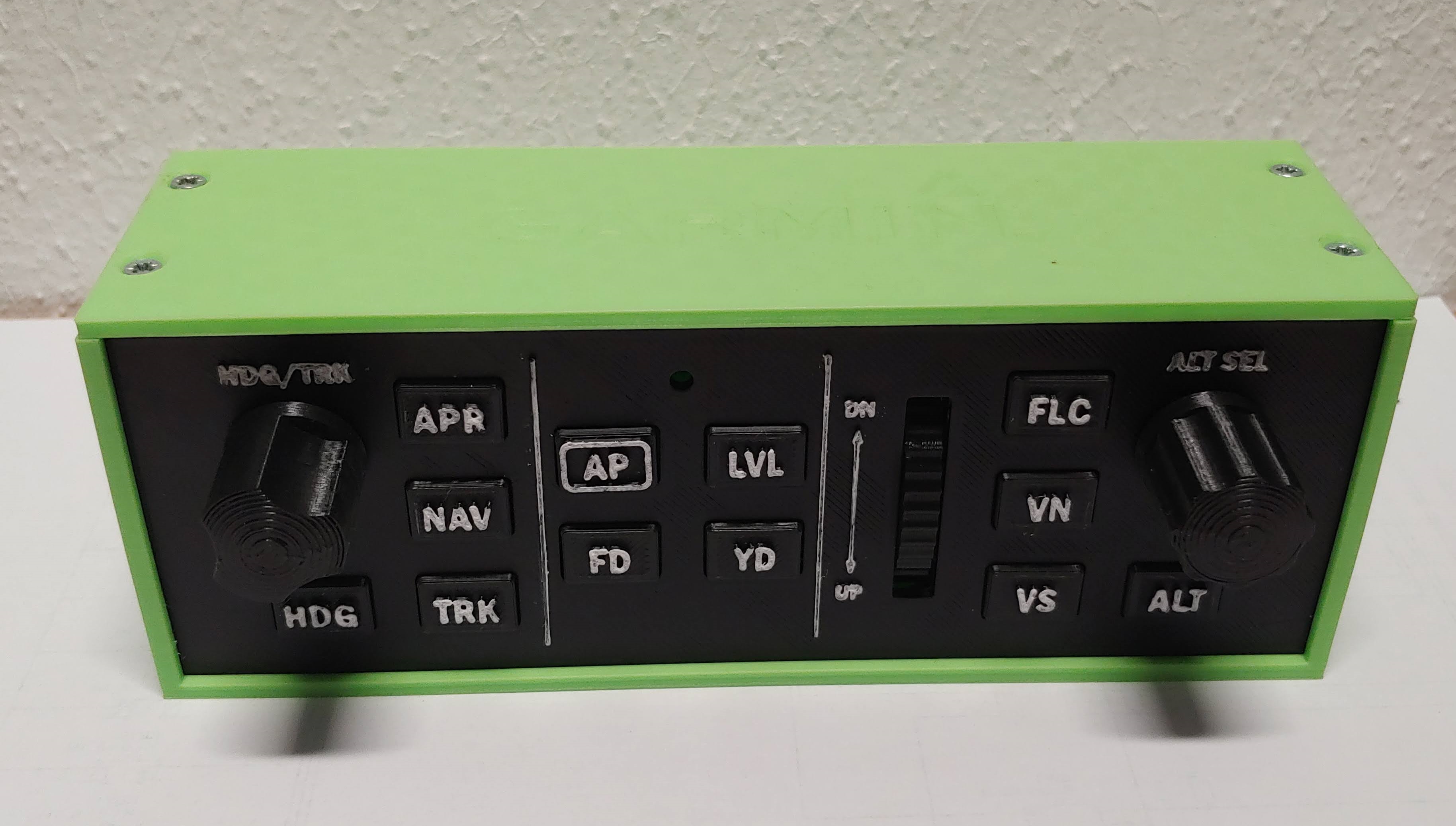

Whole Assembly

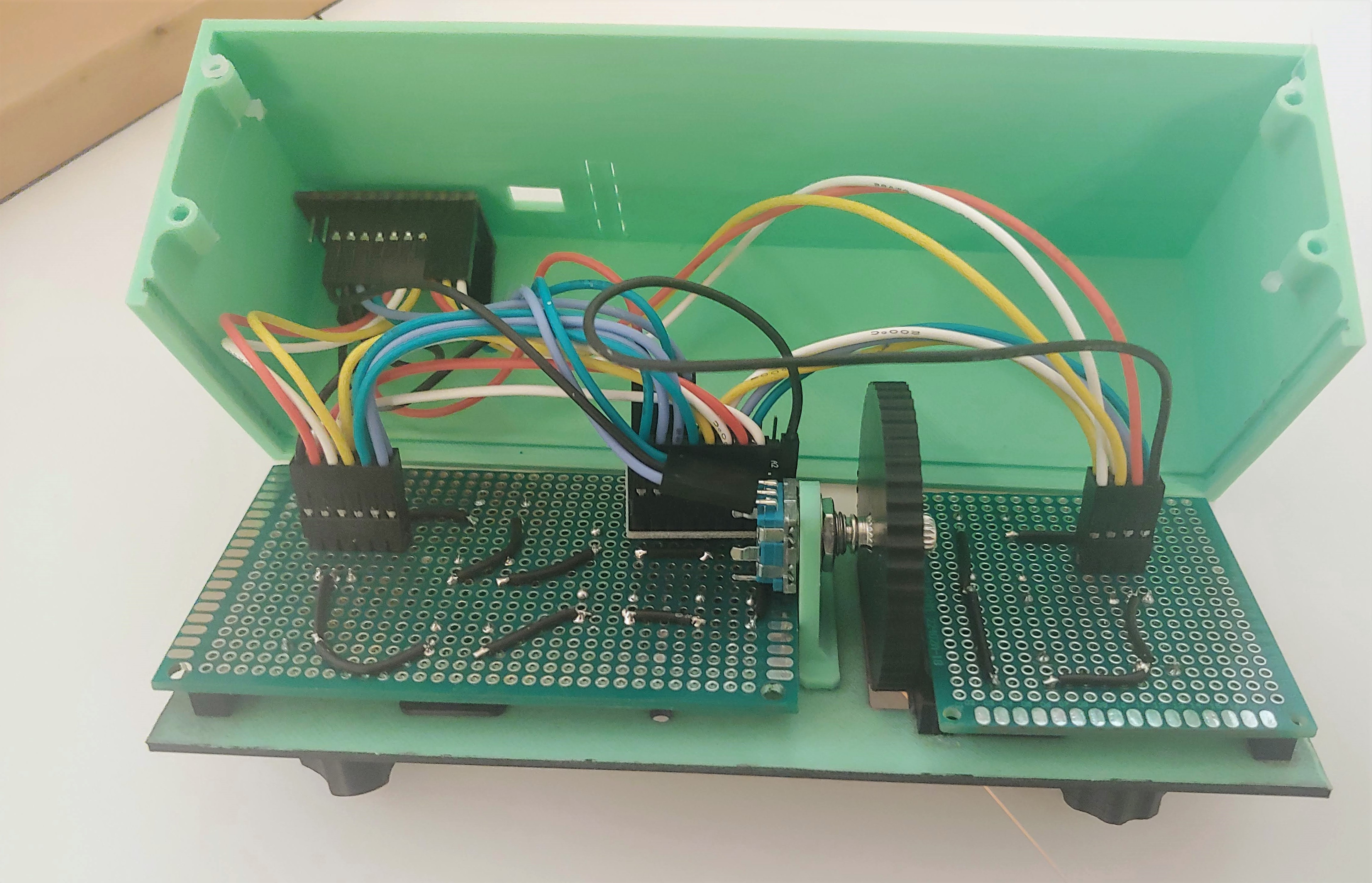

Manual Wireing

Cangelog

v1.0.0

• Initial release

  v1.0.1

• Tweaks regarding button press timings

  v1.1.0

• Added a PCB design
• Modified software for wiring
  • The buttons in the rotary encoders are now also connected to the MCP23017
  • Added a power LED

    ToDo

• Maybe a version 2 with an added lcd to show AP mode, set altitude usw. (requires software running on the PC)
